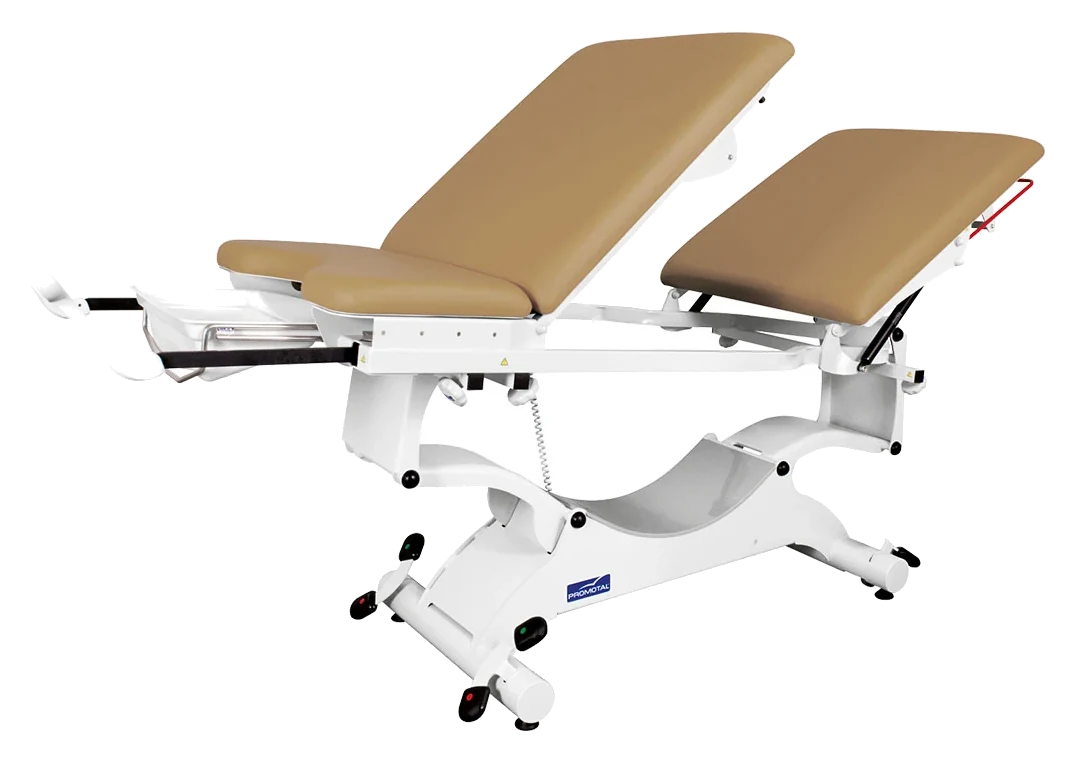

DUOLYS Medical Couch

An electric examination couch whose central section raises into a backrest, so one room covers general consultation and gynaecology.

Overview

Promotal builds the DUOLYS for the general practitioner who also practises gynaecology and has one consulting room for both. Height runs 56 to 96 cm on electric drive, by hand control or foot control, over 73 cm of upholstery. Raising the central section turns the couch into a gynaecological consultation chair, without moving the patient to another piece of furniture.

The frame carries 200 kg on an H-shaped foot. The seat upholstery lifts off and is waterproof, the plastic pan slides out and holds 6 litres, and 12 cm of clearance under the base leaves room for a mobile hoist. Promotal warrants the couch five years.

Published by Promotal, retrieved 17 August 2026, supplied by DNA Nexus.

Key Features (13)

  • Reference: 206X
  • Height range: Electric variable height 56 to 96 cm
  • Upholstery width: 73 cm
  • Maximum patient weight: 200 kg
  • Backrest: Electric adjustable central backrest. Gas-spring assisted external backrest.
  • Positioning: Electric Trendelenburg and reverse Trendelenburg, model-dependent
  • Seat: Removable waterproof seat upholstery
  • Pan: Removable sliding plastic pan, 6 litre capacity
  • Paper roll holders: 2 (max length 60 cm, diameter 15 cm)
  • Model options: Integrated stirrups, integrated leg-rest or Goeppels, model-dependent
  • Mobility: Adjustable levellers under base, or semi-centralised Block'n Roll integrated retractable castors
  • Hoist clearance: 12 cm mobile hoist compatibility clearance
  • Warranty: 5 years
